Blowers, Single Inlet, Technical Features Overview

Higher Air Pressure and Sturdy Anti-vibration Housing

PBM blowers, with forward curved impeller, compact EC motor drives optimized single inlet scroll housing. The fans could be installed at any directions with fixed riveting nut at scroll housing metal ring, optimized radial scroll housing design and plastic, metal sheet optional impeller to output higher air pressure at customer requested working point in their ventilation duct system or unit box of different materials, such as galvanized metal, aluminum, copper, PE, PVC, polyfoam etc. AC and DC power supply are available for entire range of fans with integrated and intelligence EC technology motor with inside or outside mounted international standard remote control R485 communication protocol that’s suitable to be adopted in IoE(Internet of Everything), IoT(Internet of Things), smart home system, Industry 4.0 and committed to Carbon Neutrality climate change by reducing customers carbon footprints. PFC(Power Factor Correction), up to λ>96%, is optional for electricity grad stabilization compliance in certain circumstances of applications. ErP2015 (Energy-related Products) Directive conformity, COMMISSION REGULATION (EU) No 327/2011 of 30 March 2011 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to eco-design requirements for fans driven by motors with an electric input power between 125 W and 500 kW.

Impeller Sizes: From 120mm to 280mm diameter;

Sound Level: From 50dBA to maximum 79dBA according different rotation speed;

Airflow: Maximum to 3,000CMH, Cubic Meter per Hour, equal to approx. 1,766CFM , Cubic Feet per Minute;

Air Pressure: Maxim to 900Pa, equal to 91.84mm H2O and to 3.62 inches H2O;

Power: Maximum motor input power goes to 950W (equal to 1.29hp, horsepower) at motor diameter 138mm.

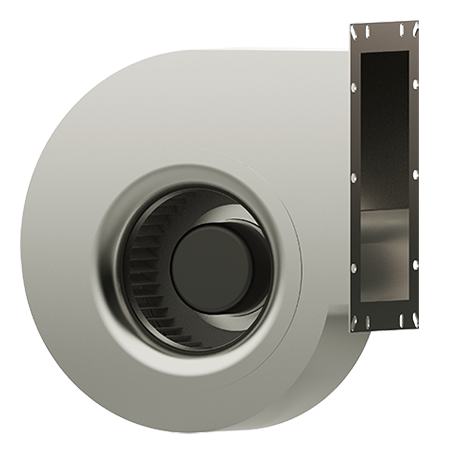

DC Blower Single Inlet D(133-280)

EC Blower Single Inlet D(120-200)

Parameter summary table

Please click on the model in the corresponding table to go to the product details page.

Model Rated Voltage Rated Power Rated Speed Air Flow Air Pressure EC/DC/AC Inquire

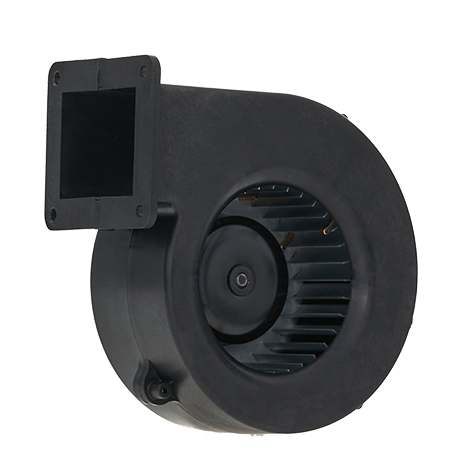

PS3N097B24M 24 VDC 76.8 W 3650 RPM 210 M³/H 740 Pa DC Inquire
PS3N097B48M 48 VDC 76.8 W 3650 RPM 210 M³/H 740 Pa DC Inquire

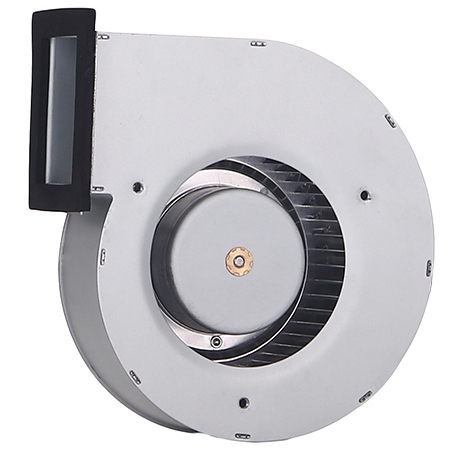

PS3N100B24M 24 VDC 24 W 2800 RPM 113.4 M³/H 338 Pa DC Inquire
PS3N100B48M 48 VDC 24 W 2800 RPM 113.4 M³/H 338 Pa DC Inquire
PS3N120B2EM 230 VAC 55 W 2400 RPM 317 M³/H 471 Pa EC Inquire
PS3N120B24M 24 VDC 72 W 2800 RPM 317 M³/H 471 Pa DC Inquire
PS3N120B48M 48 VDC 72 W 2800 RPM 317 M³/H 471 Pa DC Inquire

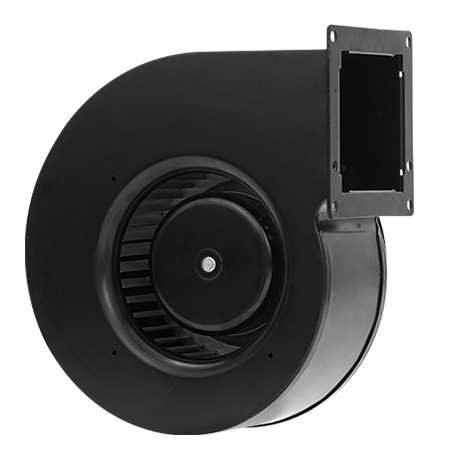

PS3N133B24M 24 VDC 60 W 2200 RPM 238 M³/H 525 Pa DC Inquire
PS3N133B48M 48 VDC 60 W 2200 RPM 238 M³/H 525 Pa DC Inquire
PS3N140B2EM 230 VAC 170 W 2600 RPM 567.7 M³/H 696 Pa EC Inquire
PS3N140B24M 24 VDC 80 W 1800 RPM 450 M³/H 420 Pa DC Inquire
PS3N140B48M 48 VDC 80 W 1800 RPM 450 M³/H 420 Pa DC Inquire
PS3N150B24M 24 VDC 105 W 2400 RPM 500 M³/H 750 Pa DC Inquire
PS3N150B48M 48 VDC 105 W 2400 RPM 500 M³/H 750 Pa DC Inquire
PS3N160B2EM 230 VAC 170 W 1950 RPM 688 M³/H 810 Pa EC Inquire
PS3N160B24M 24 VDC 105 W 1950 RPM 550 M³/H 620 Pa DC Inquire
PS3N160B48M 48 VDC 105 W 1950 RPM 550 M³/H 620 Pa DC Inquire
PS3N180B2EM 230 VAC 170 W 1500 RPM 820 M³/H 900 Pa EC Inquire
PS3N180B24M 24 VDC 90 W 1250 RPM 600 M³/H 600 Pa DC Inquire
PS3N180B48M 48 VDC 90 W 1250 RPM 600 M³/H 600 Pa DC Inquire
PS3N200B2EM 230 VAC 220 W 1600 RPM 792 M³/H 708 Pa EC Inquire
PS3N225B2EM 230 VAC 230 W 1090 RPM 1360 M³/H 620 Pa EC Inquire
PS3N250B2EM 230 VAC 230 W 840 RPM 1710 M³/H 580 Pa EC Inquire
