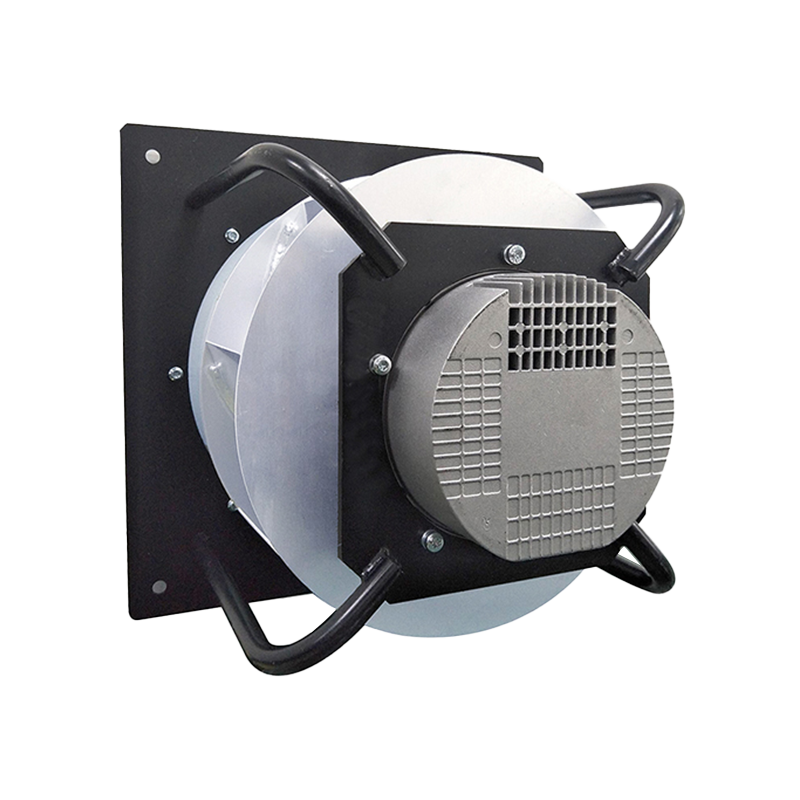

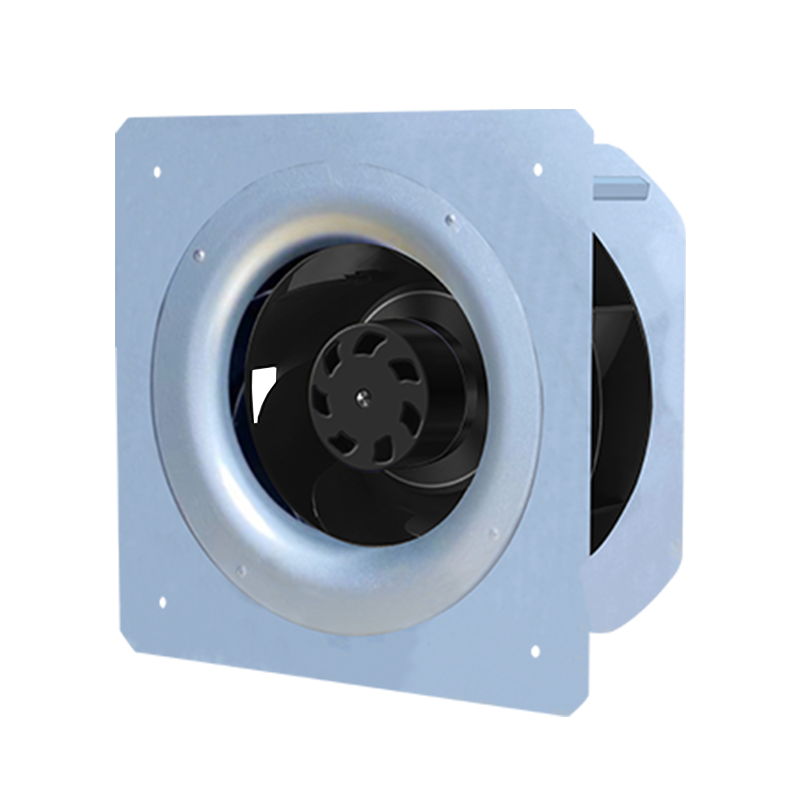

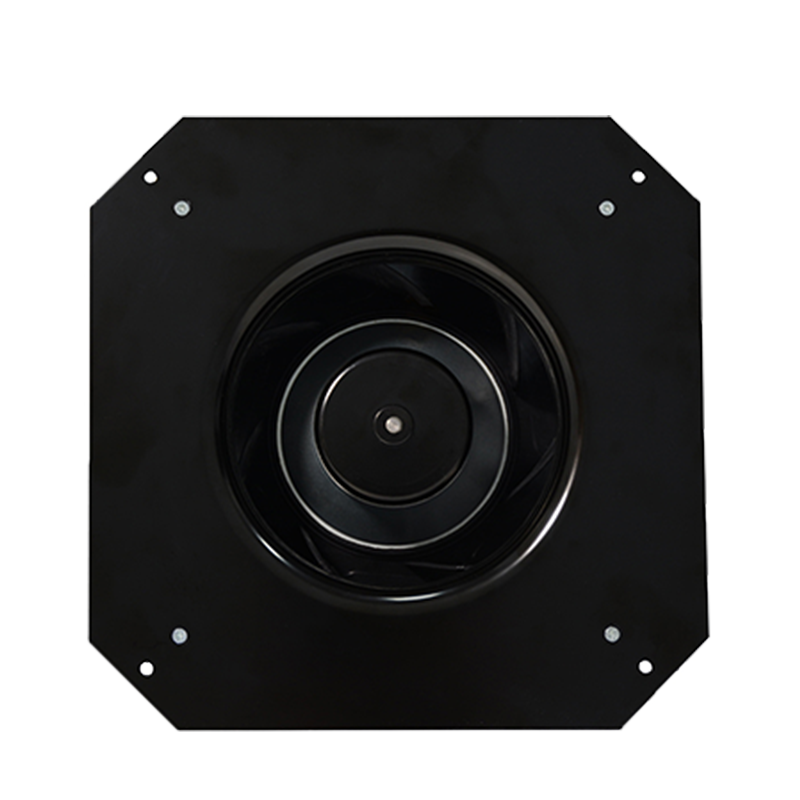

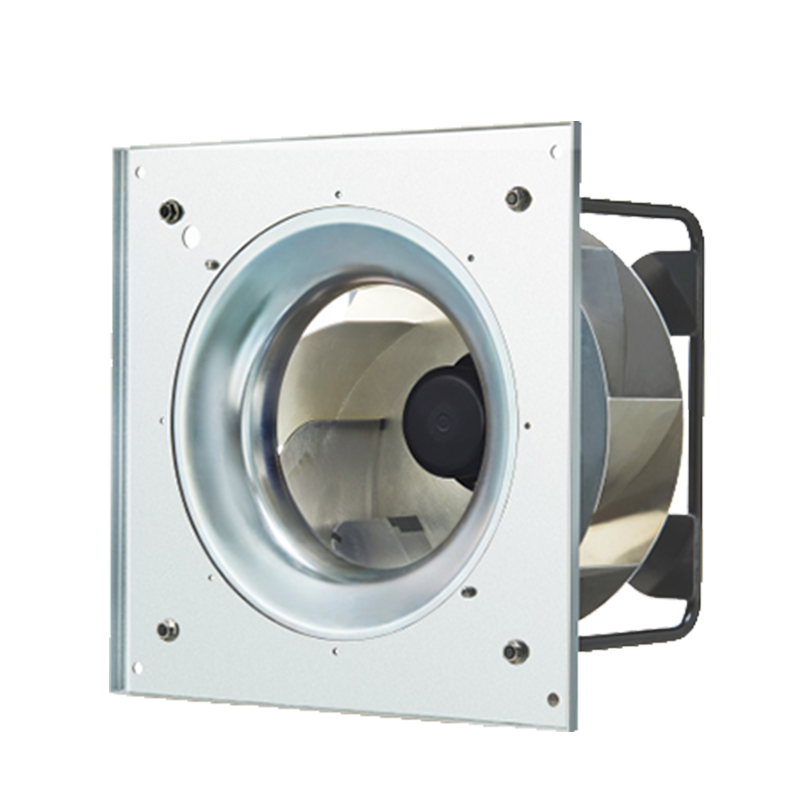

Centrifugal Fan with Support Bracket

Centrifugal Fan with Support Bracket

Centrifugal Fan with Support Bracket

Centrifugal Fan with Support Bracket

Centrifugal Fan with Support Bracket

Centrifugal Fan with Support Bracket

Centrifugal Fans with Support Bracket, Technical Features Overview

One-plug Easy-mounting with Higher Efficiency

PBM, a leading centrifugal fan company, presents its centrifugal fans with support brackets, ensuring robust and reliable airflow solutions., adopt both metal rivetstructure or welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing, installed into easy-mounting, anti-vibration, robust support bracket design to guarantee stable, quiet fan operation with maximum “η” up to 55% efficiency at ErP Directive satisfaction of customers in their ventilation, heating, refrigeration product or system. The fans could be installed at all directions with variety of fan safety guard grill and air-guiding wind deflector dome where the patten and causation of flow loss caused by the pressure distortion in rotor and stator were analyzed. AC and DC power supply are available for entire range of centrifugal support bracket fans with integrated and intelligence EC technology motor with inside or outside mounted international standard remote control R485 communication protocol that’s suitable to be adopted in IoE(Internet of Everything), IoT(Internet of Things), smart home system, Industry 4.0 and committed to Carbon Neutrality climate change by reducing customers carbon footprints. PFC(Power Factor Correction), up to λ>96%, is optional for electricity grad stabilization compliance in certain circumstances of applications. ErP2015 (Energy-related Products) conformity, COMMISSION REGULATION (EU) No 327/2011 of 30 March 2011 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to eco-design requirements for fans driven by motors with an electric input power between 125 W and 500 kW.

Impeller Sizes: From 133mm to 560mm diameter;

Sound Level: From 60dBA to maximum 82dBA according different rotation speed;

Airflow: Maximum to 16,300CMH, Cubic Meter per Hour, equal to approx. 9,593CFM , Cubic Feet per Minute;

Air Pressure: Maxim to 1,700Pa, equal to 173.5mm H2O and to 6.82 inches H2O;

Power: Maximum motor input power goes to 3.1KW (equal to 4.2hp, horsepower) at motor diameter 138mm.

DC Centrifugal Fans with Support Bracket D(133-400)

EC Centrifugal Fans with Support Bracket D(133-630)

Parameter summary table

Please click on the model in the corresponding table to go to the product details page.

Model Rated Voltage Rated Power Rated Speed Air Flow Air Pressure EC/DC/AC Inquire
PK3N133B2EH 230 VAC 48 W 4480 RPM 460 M³/H 475 Pa EC Inquire
PK3N133B2E-FZ0 230 VAC 30 W 4250 RPM 281 M³/H 459 Pa EC Inquire
PK3N133B2E-FZ5 230 VAC 34 W 4450 RPM 280 M³/H 500 Pa EC Inquire
PK3N133B2E-RB2 230 VAC 43 W 4400 RPM 415 M³/H 450 Pa EC Inquire
PK3N133B24-FZ5 24 VDC 33 W 4500 RPM 270 M³/H 450 Pa DC Inquire
PK3N133B24-RB0 24 VDC 50 W 5000 RPM 420 M³/H 750 Pa DC Inquire
PK3N133B48-FZ5 48 VDC 33 W 4500 RPM 270 M³/H 450 Pa DC Inquire
PK3N133B48-RB0 48 VDC 50 W 5000 RPM 420 M³/H 750 Pa DC Inquire
PK3N175B2EH 230 VAC 105 W 4460 RPM 810 M³/H 744 Pa EC Inquire
PK3N175B2E-FZ5 230 VAC 40 W 3200 RPM 535 M³/H 451 Pa EC Inquire
PK3N175B2E-RZ0 230 VAC 72 W 4050 RPM 710 M³/H 550 Pa EC Inquire
PK3N175B2E-SZ0 230 VAC 110 W 4600 RPM 700 M³/H 800 Pa EC Inquire
PK3N175B24H 24 VDC 38.4 W 3100 RPM 565 M³/H 402 Pa DC Inquire
PK3N175B24U 24 VDC 72 W 3900 RPM 695 M³/H 637 Pa DC Inquire
PK3N175B24-RZ0 24 VDC 85 W 4300 RPM 750 M³/H 650 Pa DC Inquire
PK3N175B48H 48 VDC 38.4 W 3100 RPM 565 M³/H 402 Pa DC Inquire
PK3N175B48U 48 VDC 72 W 3900 RPM 695 M³/H 637 Pa DC Inquire
PK3N175B48-RZ0 48 VDC 85 W 4300 RPM 750 M³/H 650 Pa DC Inquire
PK3N190B2EH 230 VAC 140 W 4000 RPM 800 M³/H 882 Pa EC Inquire
PK3N190B2EM 230 VAC 93 W 3570 RPM 795 M³/H 686 Pa EC Inquire
PK3N190B2E-RZ0 230 VAC 52 W 2940 RPM 540 M³/H 450 Pa EC Inquire
PK3N190B2E-RZ1 230 VAC 70 W 3300 RPM 685 M³/H 530 Pa EC Inquire
PK3N190B2E-RZ2 230 VAC 110 W 3700 RPM 800 M³/H 790 Pa EC Inquire
