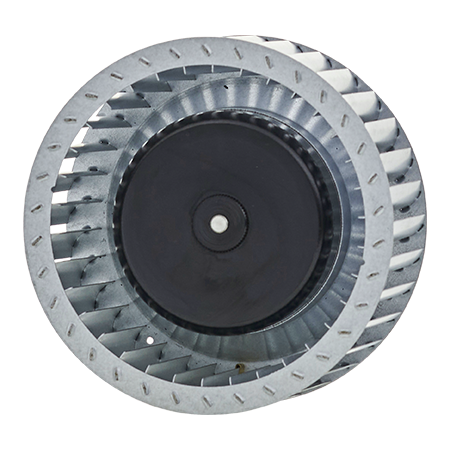

Forward Curved Centrifugal Fan

Forward Curved Centrifugal Fan

Forward Curved Centrifugal Fan

Forward Curved Centrifugal Fan

Forward Curved Centrifugal Fan

Forward Curved Centrifugal Fan

Centrifugal Fans, Forward Curved, Technical Features Overview

Higher Air Pressure with Lower Noise and Power Consumption

PBM centrifugal fans with forward curved impeller designed as freewheels fans, with and without scroll housing optional. The fans could be installed at any directions by extremely compact size, and optimized output air performance without scroll housing necessary to lower noise at customer requested higher air pressure output in their ventilation duct system or unit box of different materials, such as galvanized metal, aluminum, copper, PE, PVC, polyfoam etc. AC and DC power supply are available for entire range of fans with integrated and intelligence EC technology motor with inside or outside mounted international standard remote control R485 communication protocol that’s suitable to be adopted in IoE(Internet of Everything), IoT(Internet of Things), smart home system, Industry 4.0 and committed to Carbon Neutrality climate change by reducing customers carbon footprints. PFC(Power Factor Correction), up to λ>96%, is optional for electricity grad stabilization compliance in certain circumstances of applications. ErP2015 (Energy-related Products) Directive conformity, COMMISSION REGULATION (EU) No 327/2011 of 30 March 2011 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to eco-design requirements for fans driven by motors with an electric input power between 125 W and 500 kW.

Impeller Sizes: From 108mm to 200mm diameter;

Sound Level: From 60dBA to maximum 77dBA according different rotation speed;

Airflow: Maximum to 1,700CMH, Cubic Meter per Hour, equal to approx. 1,000CFM , Cubic Feet per Minute;

Air Pressure: Maxim to 666Pa, equal to 68mm H2O and to 2.68 inches H2O;

Power: Maximum motor input power goes to 510W (equal to 0.69hp, horsepower) at motor diameter 102mm.

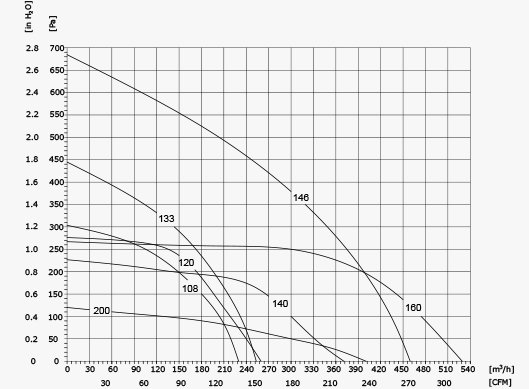

DC Centrifugal Fan Forward Curved D(108-200)

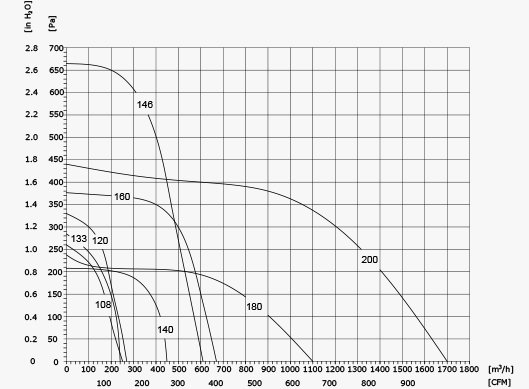

EC Centrifugal Fan Forward Curved D(108-200)

Parameter summary table

Please click on the model in the corresponding table to go to the product details page.
