Axial Fans, Technical Features Overview

Quieter, More Powerful and Longer Lifespan

PBM Axial fans adopt both metal welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing to guarantee longer lifespan. The fans could be installed at all directions with variety of fan safety guard grill, wall ring and air-guiding wind deflector dome where the patten and causation of flow loss caused by the pressure distortion in rotor and stator were analyzed. Quieter sound level contributes at customer requested fan performance working point compare with competitors in their ventilation, heating, refrigeration product or system. AC and DC power supply are available for entire range of fans with integrated and intelligence EC technology motor with inside or outside mounted international standard remote control R485 communication protocol that’s suitable to be adopted in IoE(Internet of Everything), IoT(Internet of Things), smart home system, Industry 4.0 and committed to Carbon Neutrality climate change by reducing customers carbon footprints. PFC(Power Factor Correction), up to λ>96%, is optional for electricity grad stabilization compliance in certain circumstances of applications. ErP2015 (Energy-related Products) conformity, COMMISSION REGULATION (EU) No 327/2011 of 30 March 2011 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to eco-design requirements for fans driven by motors with an electric input power between 125 W and 500 kW.

Axial Flow Fans Specification

Impeller Sizes: from 200mm to 630mm diameter;

Sound Level: from from 63dBA to maximum 78dBA according different rotation speed;

Airflow: maximum to 14,500CMH, Cubic Meter per Hour, equal to approx. 8,533CFM , Cubic Feet per Minute;

Air Pressure: Maxim to 270Pa, equal to 27.55mm H2O and to 1.08 inches H2O;

Power: Maximum motor input power goes to 950W (equal to 1.29hp, horsepower) at motor diameter 138mm.

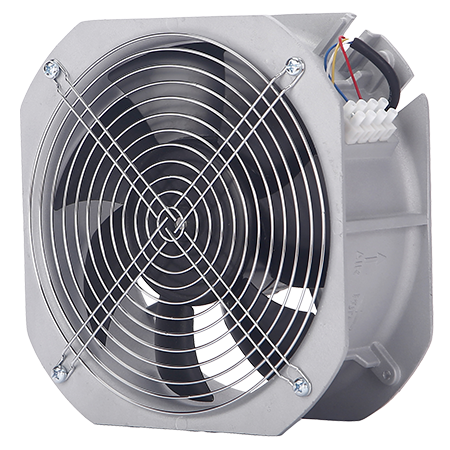

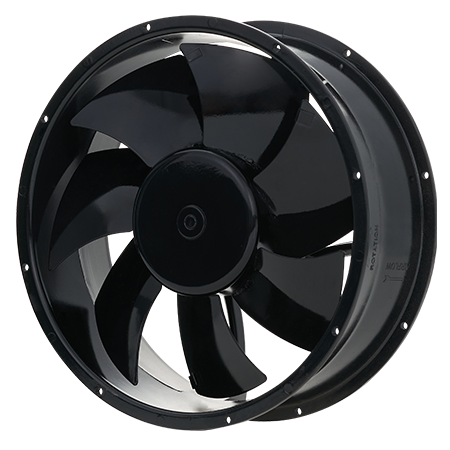

DC Axial Fan D(180-450)

DC axial fan D(180-450)

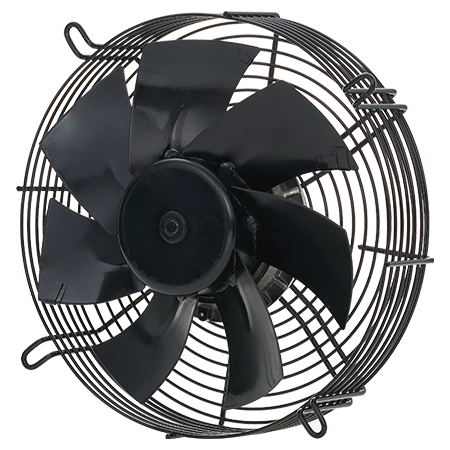

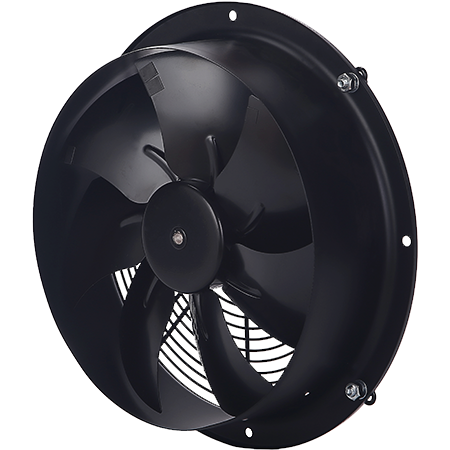

EC Axial Fan D(200-630)

EC axial fan D(200-630)



The above axial flow fans technical specifications are subject to continuous update, please take the real product as the base. PBM Motor and Fan is a professional ec axial fans manufacturer and supplier in China, providing various ec axial flow fans and motors. Product details of axial flow fan, you can contact us for wholesale price and professional service!

Parameter summary table

Please click on the model in the corresponding table to go to the product details page.

Model Rated Voltage Rated Power Rated Speed Air Flow Air Pressure EC/DC/AC Inquire
PA3N180B24H 24 VDC 100.8 W 4500 RPM 925 M³/H 709 Pa DC Inquire
PA3N180B48H 48 VDC 100.8 W 4500 RPM 925 M³/H 709 Pa DC Inquire
PA3N200B2EH 230 VAC 70 W 3200 RPM 1160 M³/H 320 Pa EC Inquire
PA3N200B24H 24 VDC 43.2 W 2750 RPM 1150 M³/H 236 Pa DC Inquire
PA3N200B48H 48 VDC 43.2 W 2750 RPM 1150 M³/H 236 Pa DC Inquire
PA3N215B24H 24 VDC 72 W 2500 RPM 1410 M³/H 190 Pa DC Inquire
PA3N215B48H 48 VDC 72 W 2500 RPM 1410 M³/H 190 Pa DC Inquire
PA3N215B24M 24 VDC 62.4 W 2000 RPM 1230 M³/H 180 Pa DC Inquire
PA3N215B48M 48 VDC 62.4 W 2000 RPM 1230 M³/H 180 Pa DC Inquire
PA3N215B24U 24 VDC 91 W 3100 RPM 1512 M³/H 294 Pa DC Inquire
PA3N215B48U 48 VDC 91 W 3100 RPM 1512 M³/H 294 Pa DC Inquire
PA3N250B2EH 230 VAC 80 W 2650 RPM 1760 M³/H 215 Pa EC Inquire
PA3N250B24H 24 VDC 115.2 W 2750 RPM 1900 M³/H 220 Pa DC Inquire
PA3N250B48H 48 VDC 115.2 W 2750 RPM 1900 M³/H 220 Pa DC Inquire
PG3N250B2EM 230 VAC 180 W 3000 RPM 1722 M³/H 268 Pa EC Inquire
PG3N300B2EM 230 VAC 95 W 2000 RPM 2267 M³/H 214 Pa EC Inquire
PW3N300B2EH 230 VAC 95 W 2000 RPM 2267 M³/H 214 Pa EC Inquire
PW3N300B24H 24 VDC 156 W 2200 RPM 2330 M³/H 316 Pa DC Inquire
PW3N300B48H 48 VDC 156 W 2200 RPM 2330 M³/H 316 Pa DC Inquire
PG3N350B2EP 230 VAC 230 W 1580 RPM 3210 M³/H 150 Pa EC Inquire
PG3N400B2EH 230 VAC 400 W 1700 RPM 5200 M³/H 250 Pa EC Inquire
PG3N400B24M 24 VDC 153.6 W 1100 RPM 3363 M³/H 108 Pa DC Inquire
PG3N400B48M 48 VDC 153.6 W 1100 RPM 3363 M³/H 108 Pa DC Inquire
