PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
General Characters
|
1-1 |
Rated Voltage |
115 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
3200 RPM |
|
1-4 |
Input Current |
0.37 A |
|
1-5 |
Input Power |
20.7 W |
|
1-6 |
Acoustical Noise |
40 dBA |
|
1-7 |
Life Expectance |
30,000 Hours At nominal supply voltage, full speed room temperature 20℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Air Flow |
35.31 CFM / 60 m³/H |
|
1-10 |
Air Pressure |
4.49 mmH2O / 44 Pa |
Mechanical Characters
|
2-1 |
Dimension |
65mm X 73mm X 163mm(see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG#20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

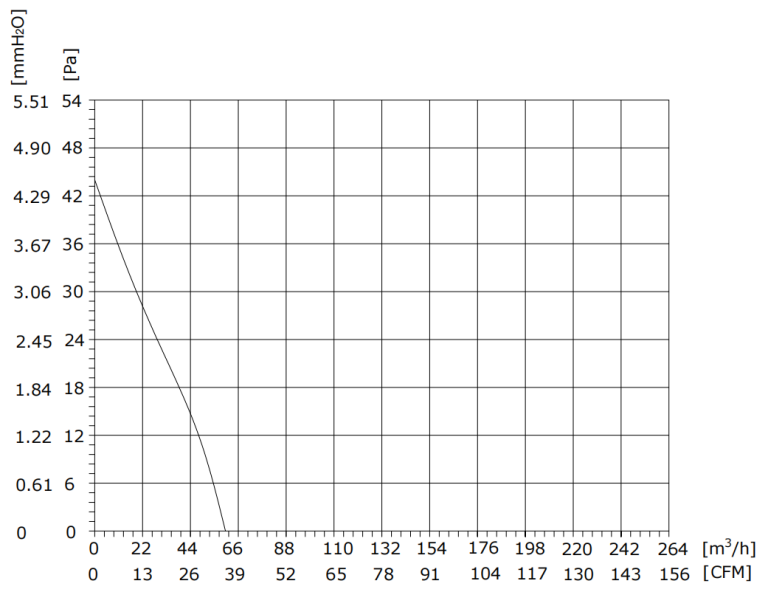

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
