IP55 Forward Curved Centrifugal Fan

IP55 Forward Curved Centrifugal Fan

IP55 Forward Curved Centrifugal Fan

IP55 Forward Curved Centrifugal Fan

IP55 Forward Curved Centrifugal Fan

IP55 Forward Curved Centrifugal Fan

Centrifugal Fans, Forward Curved, Technical Features Overview

DC Centrifugal Fan Forward Curved D(120-180)-IP55

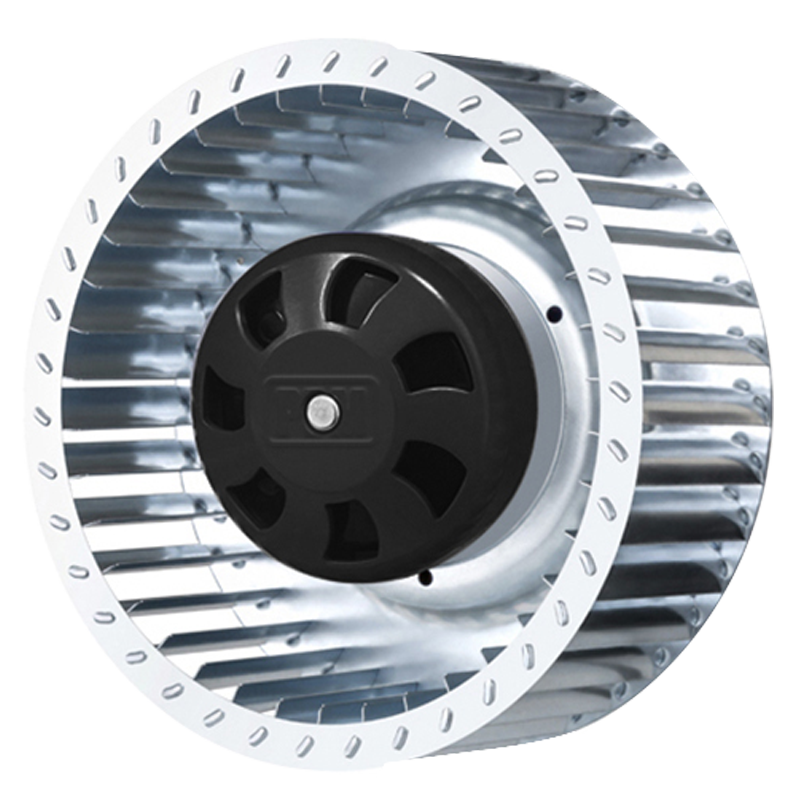

EC Centrifugal Fan Forward Curved D(108-200)-IP55

Parameter summary table

Please click on the model in the corresponding table to go to the product details page.

Model Rated Voltage Rated Power Rated Speed Air Flow Air Pressure EC/DC/AC Inquire

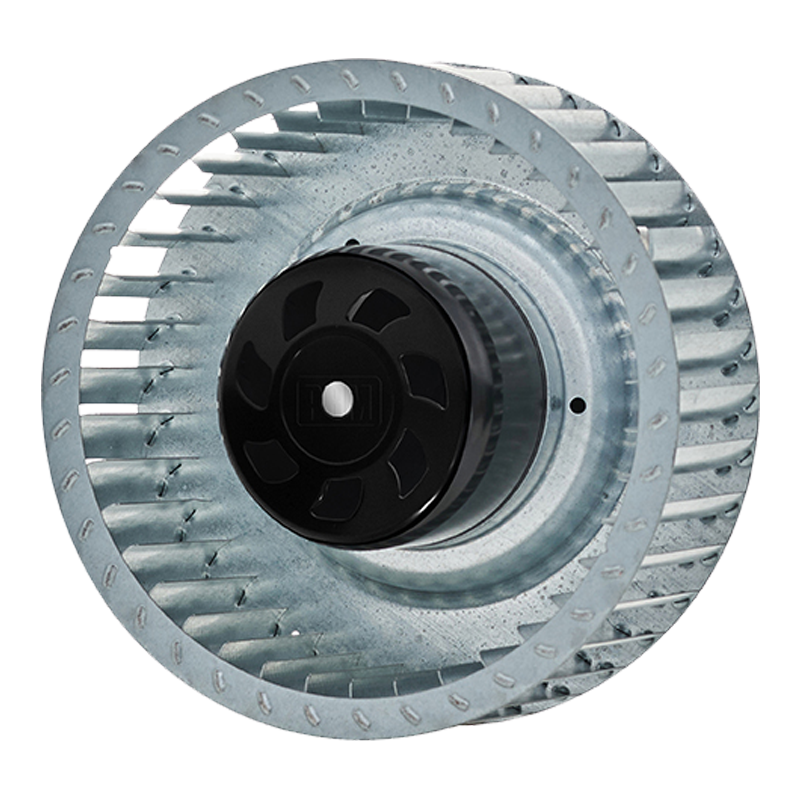

PF3N108B2E-RZ0 230 VAC 38 W 3400 RPM 330 M³/H 300 Pa EC Inquire
PF3N120B2E-RZ0 230 VAC 85 W 3450 RPM 350 M³/H 400 Pa EC Inquire
PF3N120B24-RZ0 24 VDC 67.2 W 2400 RPM 350 M³/H 640 Pa DC Inquire
PF3N120B48-RZ0 48 VDC 67.2 W 2400 RPM 350 M³/H 640 Pa DC Inquire
PF3N133B2E-RZ0 230 VAC 85 W 3200 RPM 430 M³/H 280 Pa EC Inquire

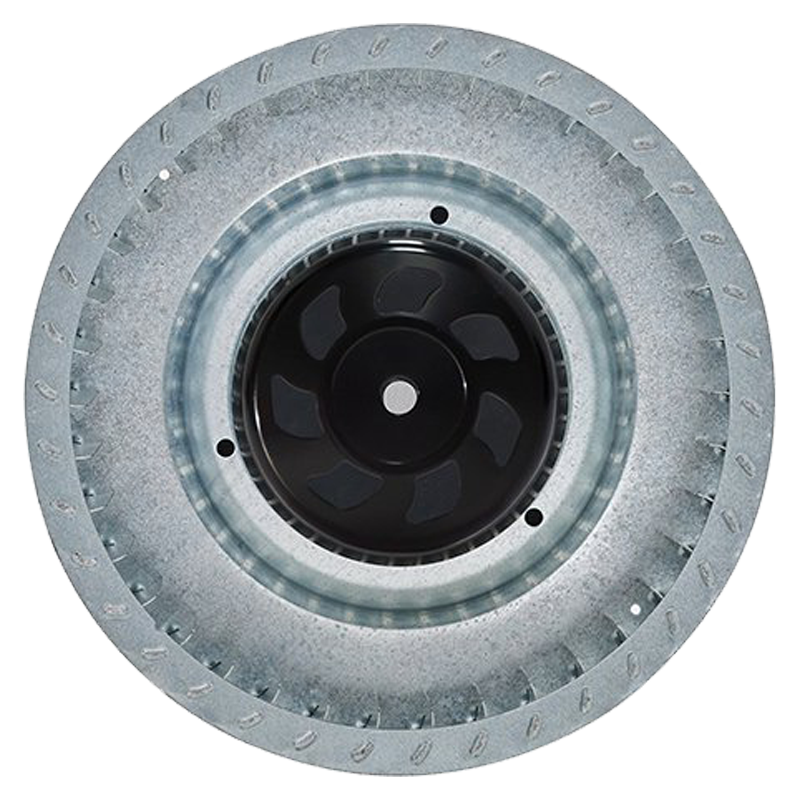

PF3N140B2E-RP0 230 VAC 85 W 1900 RPM 450 M³/H 760 Pa EC Inquire
PF3N140B2E-RZ0 230 VAC 85 W 1900 RPM 450 M³/H 760 Pa EC Inquire
PF3N140B2E-SZ0 230 VAC 115 W 2000 RPM 640 M³/H 920 Pa EC Inquire
PF3N140B24-RP0 24 VDC 52.8 W 1600 RPM 500 M³/H 850 Pa DC Inquire
PF3N140B24-RZ0 24 VDC 57.6 W 1600 RPM 450 M³/H 760 Pa DC Inquire
PF3N140B48-RP0 48 VDC 52.8 W 1600 RPM 500 M³/H 850 Pa DC Inquire
PF3N140B48-RZ0 48 VDC 57.6 W 1600 RPM 450 M³/H 760 Pa DC Inquire
PF3N146B2E-TZ0 230 VAC 170 W 2600 RPM 630 M³/H 800 Pa EC Inquire

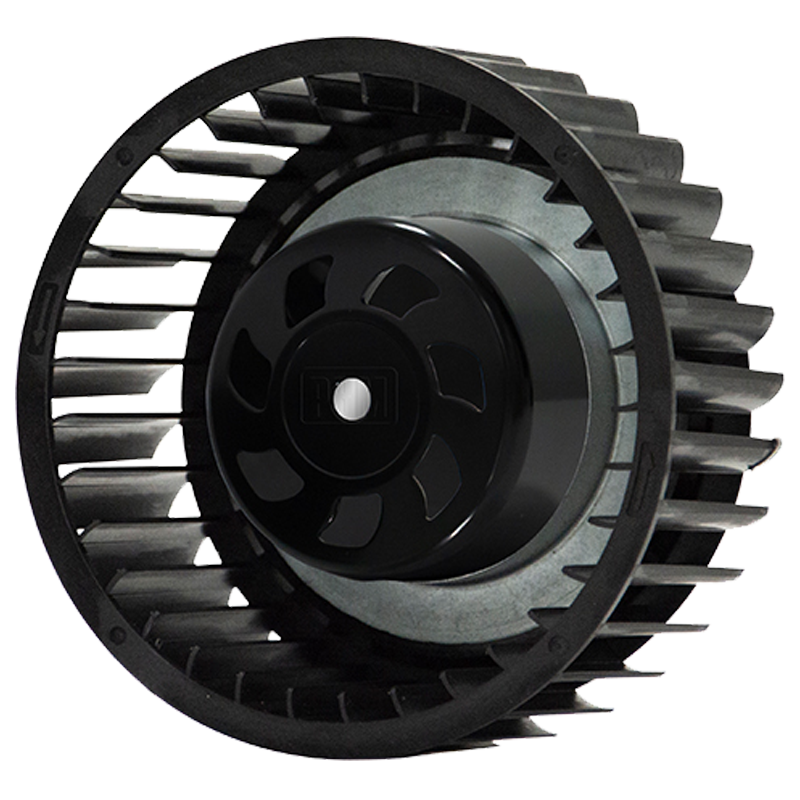

PF3N160B2E-MP0 230 VAC 220 W 2300 RPM 770 M³/H 900 Pa EC Inquire
PF3N160B2E-MZ0 230 VAC 220 W 2300 RPM 800 M³/H 820 Pa EC Inquire
PF3N160B2E-TP0 230 VAC 170 W 2000 RPM 660 M³/H 950 Pa EC Inquire
PF3N160B2E-TZ0 230 VAC 155 W 1900 RPM 640 M³/H 910 Pa EC Inquire
PF3N160B24-TP0 24 VDC 163.2 W 2000 RPM 620 M³/H 940 Pa DC Inquire
PF3N160B24-TZ0 24 VDC 163.2 W 2000 RPM 600 M³/H 900 Pa DC Inquire
PF3N160B48-TP0 48 VDC 163.2 W 2000 RPM 620 M³/H 940 Pa DC Inquire
PF3N160B48-TZ0 48 VDC 163.2 W 2000 RPM 600 M³/H 900 Pa DC Inquire
PF3N180B2E-MZ0 230 VAC 220 W 1800 RPM 900 M³/H 800 Pa EC Inquire
PF3N180B2E-TZ0 230 VAC 170 W 1550 RPM 750 M³/H 900 Pa EC Inquire
