General Characters
|
1-1 |
Rated Voltage |
24 VDC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
16~28 VAC |
|
1-4 |
Rated Speed |
2800 RPM |
|
1-5 |
Input Current |
0.03 A |
|
1-6 |
Input Power |
0.72 W |
|
1-7 |
Air Flow |
20.60 CFM / 35 m3/H |
|
1-8 |
Static Pressure |
1.73 mmH2O / 17 Pa |
|
1-9 |
Acoustical Noise |
29 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP44 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |

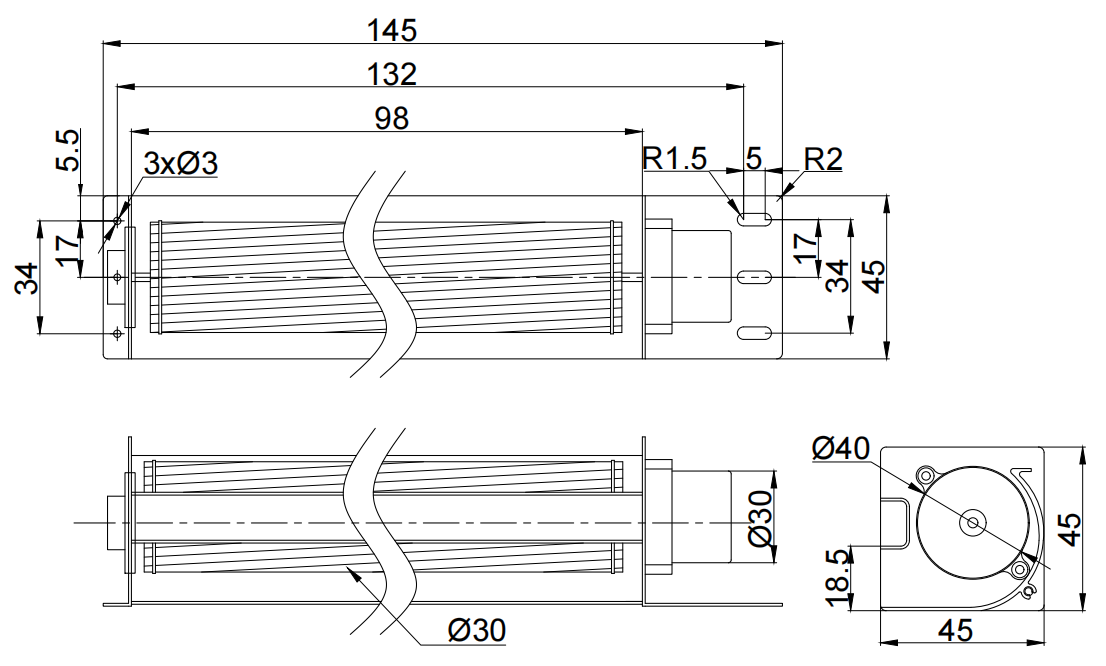

45mm X 45mm X 145mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
22 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red , Black, White AWG22# |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Input Voltage----Operating voltage (24 VDC)
Temperature-----Room temperature
Humidity---------65%RH
Test distance-----1m
Note:
1. Connection line 3X (Red, Black, White AWG22#);
Red=+24VDC, White=0-10VDC, Blue=GND.
